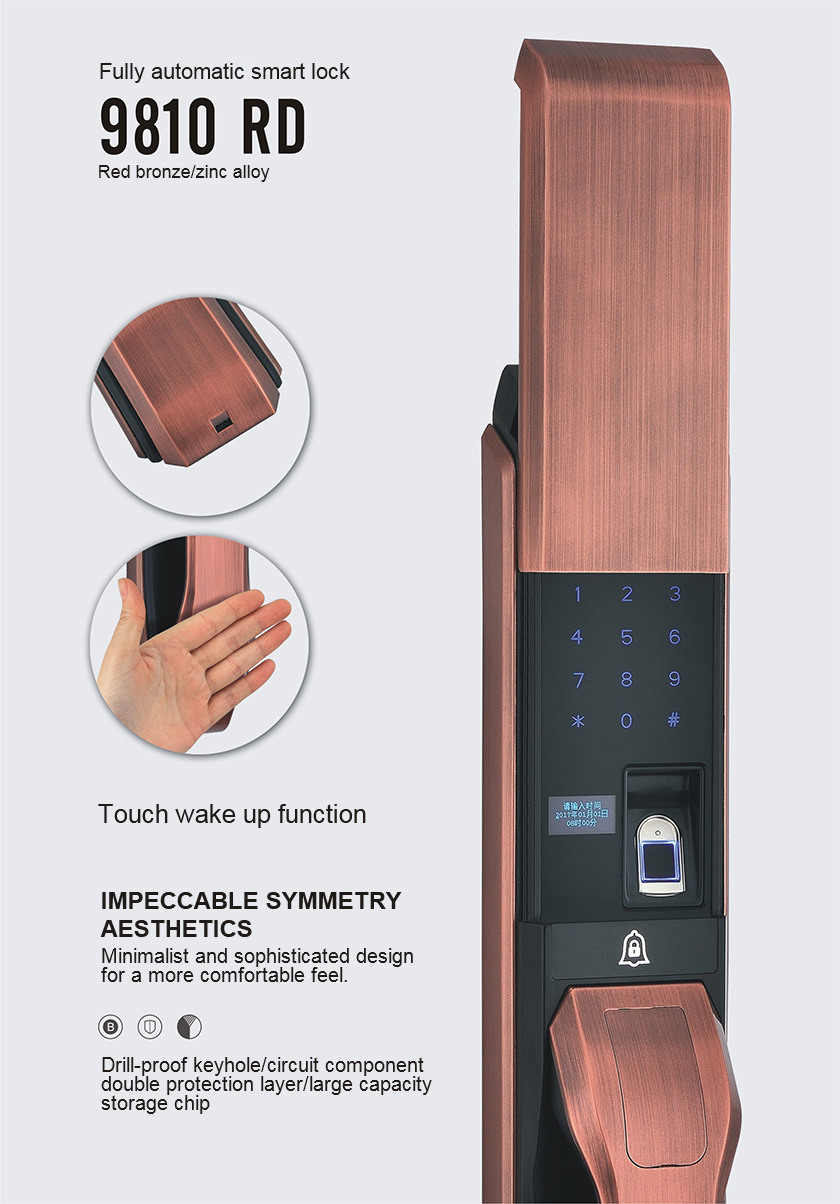

Red bronze/zinc alloy
Technical Parameters
|
Open mode |
Fingerprint password card/fingerprint password/fingerprint two-way infrared |
|
Fingerprint length |
6-10 digits (with a dummy password) |
|
Administrator |
10 groups |
|
False rate |
≤0.001% |
|
Rejection rate |
≤1.0% |
|
Matching speed |
≤1 second |
|
Fingerprint/password/card storage capacity |
100 pieces |
|
Power supply method |
8.4V lithium battery |
|
Emergency power |
5VUSB interface |
|
Static current |
≥30 μA |
|
Dynamic current |
<200mA |
|
Unlock time |
<2 seconds |
|
Working temperature |
-20℃ - +60℃ |
|
Working Humidity |
40%RH - 95%RH |
|
Applicable door thickness |
≥45mm |
|
Low Pressure Tips |
Low Voltage Alarm Function (7.2V) |
|
Keyboard Specifications |
3×4 matrix |
|
Panel material |
Zinc alloy |
|
Lock body material |
Steel |
|
Keyboard Material |
PC |
Introduction to Features
1, fingerprint unlocking
2, password unlock, anti-leak function
3, card unlock
4, mobile APP unlock (optional)
5, automatic slide
6, voice prompts
7, liquid crystal display
8, the main guest hierarchical management
9, emergency key
10, record storage
11, lift the lock
12, flood control alarm
13, low voltage prompt
14, anti-lock function
15, independent touch doorbell button
16, touch wake up function
17. One-button unlocking in the door
18, babysitting function
